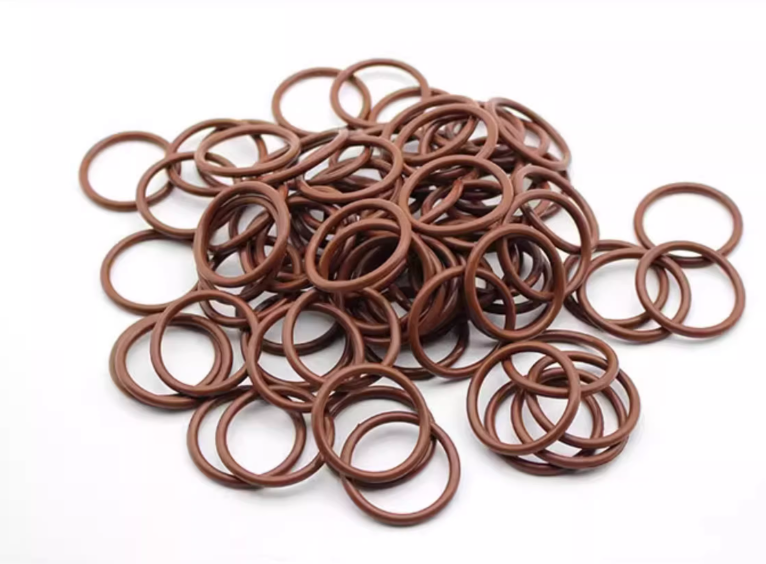

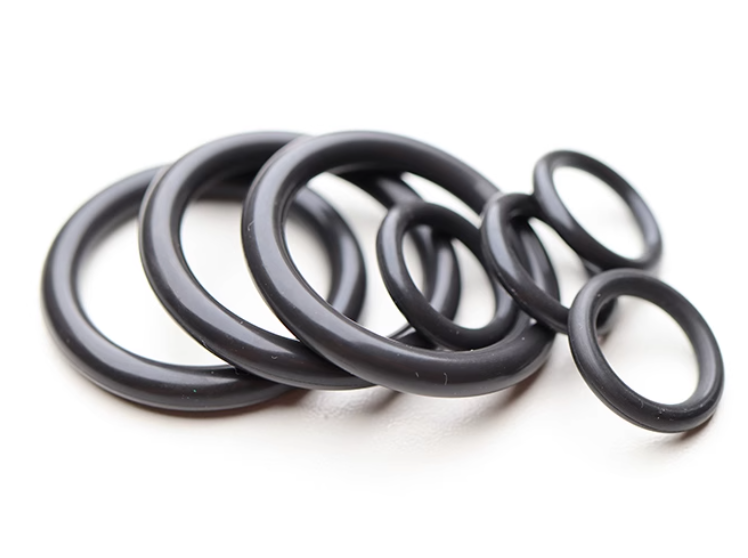

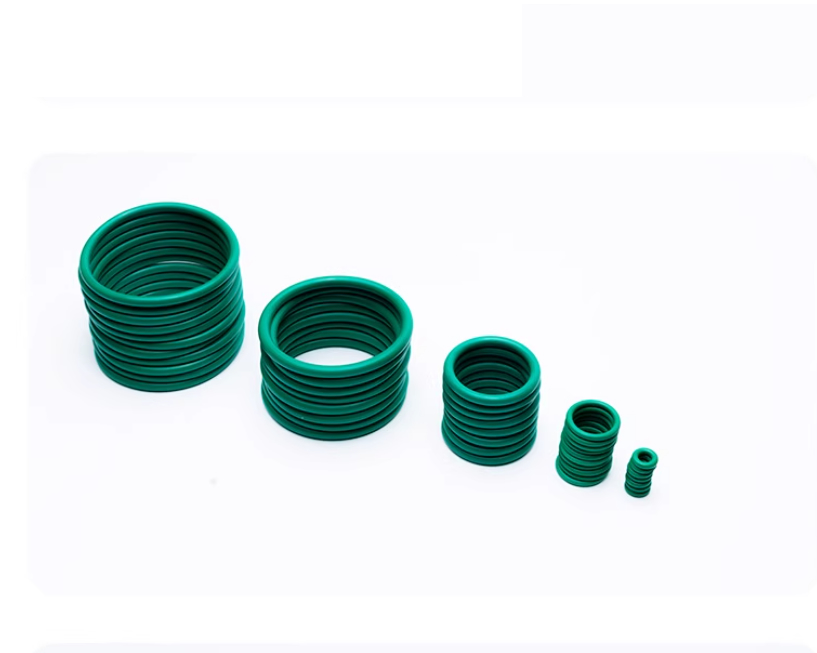

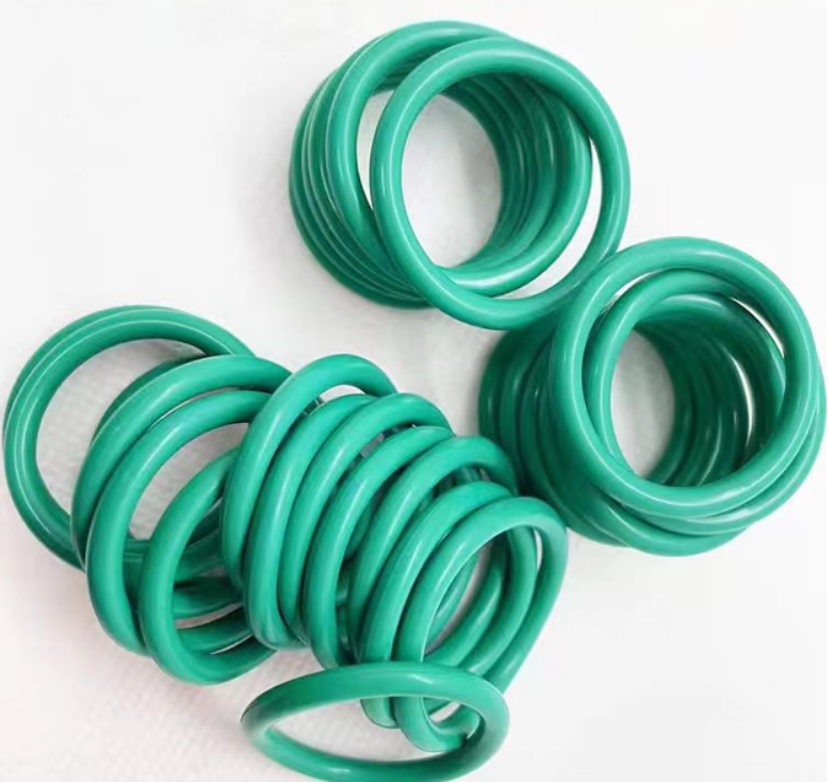

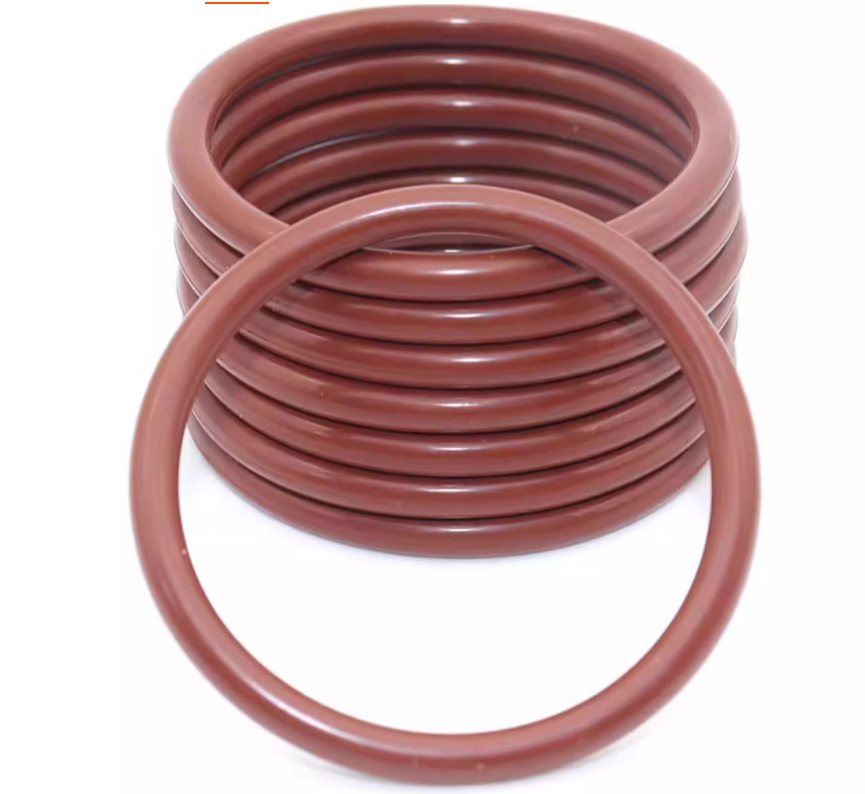

Mechanical Seal Viton FKM O-Ring For Higher Temperature Chemical Use
Mechanical Seal Viton FKM O-Ring For Higher Temperature Chemical Use Mechanical Seal Viton FKM O-Ring For Higher Temperature Chemical Use Mechanical Seal Viton FKM O-Ring For Higher Temperature Chemical Use Mechanical Seal Viton FKM O-Ring For Higher Temperature Chemical Use Mechanical Seal Viton FKM O-Ring For Higher Temperature Chemical Use
अब से संपर्क करें

Mechanical Seal Viton FKM O-Ring For Higher Temperature Chemical Use

न्यूनतम आदेश मात्रा : 100 मूल्य : Negotiated
भुगतान शर्तें : टी/टी, वेस्टर्न यूनियन,
उत्पत्ति के प्लेस: चाइना में बना ब्रांड नाम: JR
मॉडल संख्या: FKM O रिंग

विस्तार जानकारी
एचएस कोड: 848420090 शाफ्ट आकार: 200 मिमी तक
मानक या नॉनस्टैंड: मानक दबाव: 25 बार तक
आकार: आवश्यकतानुसार उद्योग: रसायन, तेल और गैस, जल और अपशिष्ट जल
उद्योग मानकों: आईएसओ 9001, एपीआई 682, डीआईएन 24960 प्रमाणपत्र: आईएसओ 9001, आईएसओ 14001, एपीआई 682
विशेषताएँ: उच्च तापमान प्रतिरोध, संक्षारण प्रतिरोध, कम रिसाव आवेदन: पंप, मिक्सर, हलचल करने वाले
सामग्री: एफकेएम समारोह: तेल पंप, पानी पंप
मानक या गैर -मानक: मानक शैली: यांत्रिक सील ओ अंगूठी
रंग: काला

उत्पाद विवरण

Double Seal For EMU Pump Cartridge Seal Mechanical Seal 35mm/50mm/75mm



Operational Conditions:

  1. FKM O-Rings Selection Guide
  2. FKM o-rings, also known as Viton® o-rings, boast exceptional chemical compatibility and high temperature resistance up to 400°F. With hundreds of specialty compounds available for specific applications, FKM is an excellent o-ring material choice for various industries.
  3. Marco Rubber utilizes the world's largest inventory network of FKM o-rings, ensuring faster responses and shorter lead times. We also offer metric FKM o-rings and custom sizes without tooling fees.
  4. Due to their superior chemical resistance and high temperature performance compared to other basic materials, FKM o-rings are extensively used in chemical, automotive, aerospace, and industrial applications.
  5. With Marco's vast inventory, direct purchasing power, and responsive service, we're your one-stop solution for all FKM or Viton® o-ring needs.



Materials:FKM



Performance Capabilities



Temperature -40℃ to 200℃, dependent on the elastomer
Pressure Up to 8 bar
Speed Up to 18 m/s
End play/axial float allowance ±0.1mm
Size As requirement
Brand JR
Face
Seat
Elastomer FKM
Spring
Metal parts
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.

Mechanical Seal Viton FKM O-Ring For Higher Temperature Chemical Use 0



Please click here to view O-Ring Size Chart

O-ring Sizes: Standard and Metric


Size Nominal Size Standard Size   Metric Size
  inches inches   millimeters
  ID Width ID Width   ID Width
  Inside Diameter Inside Diameter     Inside Diameter
2 - 001 1/32 1/32 0.029 0.04   0.74 1.02
2 - 002 3/64 3/64 0.042 0.05   1.07 1.27
2 - 003 1/16 1/16 0.056 0.06   1.42 1.52
2 - 004 5/64 1/16 0.07 0.07   1.78 1.78
2 - 005 3/32 1/16 0.101 0.07   2.57 1.78
2 - 006 1/8 1/16 0.114 0.07   2.9 1.78
2 - 007 5/32 1/16 0.145 0.07   3.68 1.78
2 - 008 3/16 1/16 0.176 0.07   4.47 1.78
2 - 009 7/32 1/16 0.208 0.07   5.28 1.78
2 - 010 1/4 1/16 0.239 0.07   6.07 1.78
2 - 011 5/16 1/16 0.301 0.07   7.65 1.78
2 - 012 3/8 1/16 0.364 0.07   9.25 1.78
2 - 013 7/16 1/16 0.426 0.07   10.82 1.78
2 - 014 1/2 1/16 0.489 0.07   12.42 1.78
2 - 015 9/16 1/16 0.551 0.07   14 1.78
2 - 016 5/8 1/16 0.614 0.07   15.6 1.78
2 - 017 11/16 1/16 0.676 0.07   17.17 1.78
2 - 018 3/4 1/16 0.739 0.07   18.77 1.78
2 - 019 13/16 1/16 0.801 0.07   20.35 1.78
2 - 020 7/8 1/16 0.864 0.07   21.95 1.78
2 - 021 15/16 1/16 0.926 0.07   23.52 1.78
2 - 022 1 1/16 0.989 0.07   25.12 1.78
2 - 023 1 1/16 1/16 1.051 0.07   26.7 1.78
2 - 024 1 1/8 1/16 1.114 0.07   28.3 1.78
2 - 025 1 3/16 1/16 1.176 0.07   29.87 1.78
2 - 026 1 1/4 1/16 1.239 0.07   31.47 1.78
2 - 027 1 5/16 1/16 1.301 0.07   33.05 1.78
Size Nominal Size Standard Size   Metric Size
  inches inches   millimeters
  ID Width ID Width   ID Width
  Inside Diameter Inside Diameter     Inside Diameter
2 - 028 1 3/8 1/16 1.364 0.07   34.65 1.78
2 - 029 1 1/2 1/16 1.489 0.07   37.82 1.78
2 - 030 1 5/8 1/16 1.614 0.07   41 1.78
2 - 031 1 3/4 1/16 1.739 0.07   44.17 1.78
2 - 032 1 7/8 1/16 1.864 0.07   47.35 1.78
2 - 033 2 1/16 1.989 0.07   50.52 1.78
2 - 034 2 1/8 1/16 2.114 0.07   53.7 1.78
2 - 035 2 1/4 1/16 2.239 0.07   56.87 1.78
2 - 036 2 3/8 1/16 2.364 0.07   60.05 1.78
2 - 037 2 1/2 1/16 2.489 0.07   63.22 1.78
2 - 038 2 5/8 1/16 2.614 0.07   66.4 1.78
2 - 039 2 3/4 1/16 2.739 0.07   69.57 1.78
2 - 040 2 7/8 1/16 2.864 0.07   72.75 1.78
2 - 041 3 1/16 2.989 0.07   75.92 1.78
2 - 042 3 1/4 1/16 3.239 0.07   82.27 1.78
2 - 043 3 1/2 1/16 3.489 0.07   88.62 1.78
2 - 044 3 3/4 1/16 3.739 0.07   94.97 1.78
2 - 045 4 1/16 3.989 0.07   101.32 1.78
2 - 046 4 1/4 1/16 4.239 0.07   107.67 1.78
2 - 047 4 1/2 1/16 4.489 0.07   114.02 1.78
2 - 048 4 3/4 1/16 4.739 0.07   120.37 1.78
2 - 049 5 1/16 4.989 0.07   126.72 1.78
2 - 050 5 1/4 1/16 5.239 0.07   133.07 1.78
2 - 102 1/16 3/32 0.049 0.103   1.24 2.62
2 - 103 3/32 3/32 0.081 0.103   2.06 2.62
2 - 104 1/8 3/32 0.112 0.103   2.84 2.62
2 - 105 5/32 3/32 0.143 0.103   3.63 2.62
2 - 106 3/16 3/32 0.174 0.103   4.42 2.62
2 - 107 7/32 3/32 0.206 0.103   5.23 2.62
Size Nominal Size Standard Size   Metric Size
  inches inches   millimeters
  ID Width ID Width   ID Width
  Inside Diameter Inside Diameter     Inside Diameter
2 - 108 1/4 3/32 0.237 0.103   6.02 2.62
2 - 109 5/16 3/32 0.299 0.103   7.59 2.62
2 - 110 3/8 3/32 0.362 0.103   9.19 2.62
2 - 111 7/16 3/32 0.424 0.103   10.77 2.62
2 - 112 1/2 3/32 0.487 0.103   12.37 2.62
2 - 113 9/16 3/32 0.549 0.103   13.94 2.62
2 - 114 5/8 3/32 0.612 0.103   15.54 2.62
2 - 115 11/16 3/32 0.674 0.103   17.12 2.62
2 - 116 3/4 3/32 0.737 0.103   18.72 2.62
2 - 117 13/16 3/32 0.799 0.103   20.3 2.62
2 - 118 7/8 3/32 0.862 0.103   21.89 2.62
2 - 119 15/16 3/32 0.924 0.103   23.47 2.62
2 -120 1 3/32 0.987 0.103   25.07 2.62
2 - 121 1 1/16 3/32 1.049 0.103   26.64 2.62
2 - 122 1 1/8 3/32 1.112 0.103   28.24 2.62
2 - 123 1 3/16 3/32 1.174 0.103   29.82 2.62
2 - 124 1 1/4 3/32 1.237 0.103   31.42 2.62
2 - 125 1 5/16 3/32 1.299 0.103   32.99 2.62
2 - 126 1 3/8 3/32 1.362 0.103   34.59 2.62
2 - 127 1 7/16 3/32 1.424 0.103   36.17 2.62
2 - 128 1 1/2 3/32 1.487 0.103   37.77 2.62
2 - 129 1 9/16 3/32 1.549 0.103   39.34 2.62
2 - 130 1 5/8 3/32 1.612 0.103   40.94 2.62
2 - 131 1 11/16 3/32 1.674 0.103   42.52 2.62
2 - 132 1 3/4 3/32 1.737 0.103   44.12 2.62
2 - 133 1 13/16 3/32 1.799 0.103   45.69 2.62
2 - 134 1 7/8 3/32 1.862 0.103   47.29 2.62
2 - 135 1 15/16 3/32 1.925 0.103   48.9 2.62
2 - 136 2 3/32 1.987 0.103   50.47 2.62
Size Nominal Size Standard Size   Metric Size
  inches inches   millimeters
  ID Width ID Width   ID Width
  Inside Diameter Inside Diameter     Inside Diameter
2 - 137 2 1/16 3/32 2.05 0.103   52.07 2.62
2 - 138 2 1/8 3/32 2.112 0.103   53.64 2.62
2 - 139 2 3/16 3/32 2.175 0.103   55.25 2.62
2 - 140 2 1/4 3/32 2.237 0.103   56.82 2.62
2 - 141 2 5/16 3/32 2.3 0.103   58.42 2.62
2 - 142 2 3/8 3/32 2.362 0.103   59.99 2.62
2 - 143 2 7/16 3/32 2.425 0.103   61.6 2.62
2 - 144 2 1/2 3/32 2.487 0.103   63.17 2.62
2 - 145 2 9/16 3/32 2.55 0.103   64.77 2.62
2 - 146 2 5/8 3/32 2.612 0.103   66.34 2.62
2 - 147 2 11/16 3/32 2.675 0.103   67.95 2.62
2 - 148 2 3/4 3/32 2.737 0.103   69.52 2.62
2 - 149 2 13/16 3/32 2.8 0.103   71.12 2.62
2 - 150 2 7/8 3/32 2.862 0.103   72.69 2.62
2 - 151 3 3/32 2.987 0.103   75.87 2.62
2 - 152 3 1/4 3/32 3.237 0.103   82.22 2.62
2 - 153 3 1/2 3/32 3.487 0.103   88.57 2.62
2 - 154 3 3/4 3/32 3.737 0.103   94.92 2.62
2 - 155 4 3/32 3.987 0.103   101.27 2.62
2 - 156 4 1/4 3/32 4.237 0.103   107.62 2.62
2 - 157 4 1/2 3/32 4.487 0.103   113.97 2.62
2 - 158 4 3/4 3/32 4.737 0.103   120.32 2.62
2 - 159 5 3/32 4.987 0.103   126.67 2.62
2 - 160 5 1/4 3/32 5.237 0.103   133.02 2.62
2 - 161 5 1/2 3/32 5.487 0.103   139.37 2.62
2 - 162 5 3/4 3/32 5.737 0.103   145.72 2.62
2 - 163 6 3/32 5.987 0.103   152.07 2.62
2 - 164 6 1/4 3/32 6.237 0.103   158.42 2.62
2 - 165 6 1/2 3/32 6.487 0.103   164.77 2.62
Size Nominal Size Standard Size   Metric Size
  inches inches   millimeters
  ID Width ID Width   ID Width
  Inside Diameter Inside Diameter     Inside Diameter
2 - 166 6 3/4 3/32 6.737 0.103   171.12 2.62
2 - 167 7 3/32 6.987 0.103   177.47 2.62
2 - 168 7 1/4 3/32 7.237 0.103   183.82 2.62
2 - 169 7 1/2 3/32 7.487 0.103   190.17 2.62
2 - 170 7 3/4 3/32 7.737 0.103   196.52 2.62
2 - 171 8 3/32 7.987 0.103   202.87 2.62
2 - 172 8 1/4 3/32 8.237 0.103   209.22 2.62
2 - 173 8 1/2 3/32 8.487 0.103   215.57 2.62
2 - 174 8 3/4 3/32 8.737 0.103   221.92 2.62
2 - 175 9 3/32 8.987 0.103   228.27 2.62
2 - 176 9 1/4 3/32 9.237 0.103   234.62 2.62
2 - 177 9 1/2 3/32 9.487 0.103   240.97 2.62
2 - 178 9 3/4 3/32 9.737 0.103   247.32 2.62
2 - 201 3/16 1/8 0.171 0.139   4.34 3.53
2 - 202 1/4 1/8 0.234 0.139   5.94 3.53
2 - 203 5/16 1/8 0.296 0.139   7.52 3.53
2 - 204 3/8 1/8 0.359 0.139   9.12 3.53
2 - 205 7/16 1/8 0.421 0.139   10.69 3.53
2 - 206 1/2 1/8 0.484 0.139   12.29 3.53
2 - 207 9/16 1/8 0.546 0.139   13.87 3.53
2 - 208 5/8 1/8 0.609 0.139   15.47 3.53
2 - 209 11/16 1/8 0.671 0.139   17.04 3.53
2 - 210 3/4 1/8 0.734 0.139   18.64 3.53
2 - 211 13/16 1/8 0.796 0.139   20.22 3.53
2 - 212 7/8 1/8 0.859 0.139   21.82 3.53
2 - 213 15/16 1/8 0.921 0.139   23.39 3.53
2 - 214 1 1/8 0.984 0.139   24.99 3.53
2 - 215 1 1/16 1/8 1.046 0.139   26.57 3.53
2 - 216 1 1/8 1/8 1.109 0.139   28.17 3.53
Size Nominal Size Standard Size   Metric Size
  inches inches   millimeters
  ID Width ID Width   ID Width
  Inside Diameter Inside Diameter     Inside Diameter
2 - 217 1 3/16 1/8 1.171 0.139   29.74 3.53
2 - 218 1 1/4 1/8 1.234 0.139   31.34 3.53
2 - 219 1 5/16 1/8 1.296 0.139   32.92 3.53
2 - 220 1 3/8 1/8 1.359 0.139   34.52 3.53
2 - 221 1 7/16 1/8 1.421 0.139   36.09 3.53
2 - 222 1 1/2 1/8 1.484 0.139   37.69 3.53
2 - 223 1 5/8 1/8 1.609 0.139   40.87 3.53
2 - 224 1 3/4 1/8 1.734 0.139   44.04 3.53
2 - 225 1 7/8 1/8 1.859 0.139   47.22 3.53
2 - 226 2 1/8 1.984 0.139   50.39 3.53
2 - 227 2 1/16 1/8 2.109 0.139   53.57 3.53
2 - 228 2 1/4 1/8 2.234 0.139   56.74 3.53
2 - 229 2 3/8 1/8 2.359 0.139   59.92 3.53
2 - 230 2 1/2 1/8 2.484 0.139   63.09 3.53
2 - 231 2 5/8 1/8 2.609 0.139   66.27 3.53
2 - 232 2 3/4 1/8 2.734 0.139   69.44 3.53
2 - 233 2 7/8 1/8 2.859 0.139   72.62 3.53
2 - 234 3 1/8 2.984 0.139   75.79 3.53
2 - 235 3 1/8 1/8 3.109 0.139   78.97 3.53
2 - 236 3 1/4 1/8 3.234 0.139   82.14 3.53
2 - 237 3 3/8 1/8 3.359 0.139   85.32 3.53
2 - 238 3 1/2 1/8 3.484 0.139   88.49 3.53
2 - 239 3 5/8 1/8 3.609 0.139   91.67 3.53
2 - 240 3 3/4 1/8 3.734 0.139   94.84 3.53
2 - 241 3 7/8 1/8 3.859 0.139   98.02 3.53
2 - 242 4 1/8 3.984 0.139   101.19 3.53
2 - 243 4 1/8 1/8 4.109 0.139   104.37 3.53
2 - 244 4 1/4 1/8 4.234 0.139   107.54 3.53
2 - 245 4 3/8 1/8 4.359 0.139   110.7 3.53
Size Nominal Size Standard Size   Metric Size
  inches inches   millimeters
  ID Width ID Width   ID Width
  Inside Diameter Inside Diameter     Inside Diameter
2 - 246 4 1/2 1/8 4.484 0.139   113.89 3.53
2 - 247 4 5/8 1/8 4.609 0.139   117.07 3.53
2 - 248 4 3/4 1/8 4.734 0.139   120.24 3.53
2 - 249 4 7/8 1/8 4.859 0.139   123.42 3.53
2 - 250 5 1/8 4.984 0.139   126.59 3.53
2 - 251 5 1/8 1/8 5.109 0.139   129.77 3.53
2 - 252 5 1/4 1/8 5.234 0.139   132.94 3.53
2 - 253 5 3/8 1/8 5.359 0.139   136.12 3.53
2 - 254 5 1/2 1/8 5.484 0.139   139.29 3.53
2 - 255 5 5/8 1/8 5.609 0.139   142.47 3.53
2 - 256 5 3/4 1/8 5.734 0.139   145.64 3.53
2 - 257 5 7/8 1/8 5.859 0.139   148.82 3.53
2 - 258 6 1/8 5.984 0.139   151.99 3.53
2 - 259 6 1/4 1/8 6.234 0.139   158.34 3.53
2 - 260 6 1/2 1/8 6.484 0.139   164.69 3.53
2 - 261 6 3/4 1/8 6.734 0.139   171.04 3.53
2 - 262 7 1/8 6.984 0.139   177.39 3.53
2 - 263 7 1/4 1/8 7.234 0.139   183.74 3.53
2 - 264 7 1/2 1/8 7.484 0.139   190.09 3.53
2 - 265 7 3/4 1/8 7.734 0.139   196.44 3.53
2 - 266 8 1/8 7.984 0.139   202.79 3.53
2 - 267 8 1/4 1/8 8.234 0.139   209.14 3.53
2 - 268 8 1/2 1/8 8.484 0.139   215.49 3.53
2 - 269 8 3/4 1/8 8.734 0.139   221.84 3.53
2 - 270 9 1/8 8.984 0.139   228.19 3.53
2 - 271 9 1/4 1/8 9.234 0.139   234.54 3.53
2 - 272 9 1/2 1/8 9.484 0.139   240.89 3.53
2 - 273 9 3/4 1/8 9.734 0.139   247.24 3.53
2 - 274 10 1/8 9.984 0.139   253.59 3.53
Size Nominal Size Standard Size   Metric Size
  inches inches   millimeters
  ID Width ID Width   ID Width
  Inside Diameter Inside Diameter     Inside Diameter
2 - 275 10 1/2 1/8 10.484 0.139   266.29 3.53
2 - 276 11 1/8 10.984 0.139   278.99 3.53
2 - 277 11 1/2 1/8 11.484 0.139   291.69 3.53
2 - 278 12 1/8 11.984 0.139   304.39 3.53
2 - 279 13 1/8 12.984 0.139   329.79 3.53
2 - 280 14 1/8 13.984 0.139   355.19 3.53
2 - 281 15 1/8 14.984 0.139   380.59 3.53
2 - 282 16 1/8 15.955 0.139   405.26 3.53
2 - 283 17 1/8 16.955 0.139   430.66 3.53
2 - 284 18 1/8 17.955 0.139   456.06 3.53
2 - 309 7/16 3/16 0.412 0.21   10.46 5.33
2 - 310 1/2 3/16 0.475 0.21   12.07 5.33
2 - 311 9/16 3/16 0.537 0.21   13.64 5.33
2 - 312 5/8 3/16 0.6 0.21   15.24 5.33
2 - 313 11/16 3/16 0.662 0.21   16.81 5.33
2 - 314 3/4 3/16 0.725 0.21   18.42 5.33
2 - 315 13/16 3/16 0.787 0.21   19.99 5.33
2 - 316 7/8 3/16 0.85 0.21   21.59 5.33
2 - 317 15/16 3/16 0.912 0.21   23.16 5.33
2 - 318 1 3/16 0.975 0.21   24.77 5.33
2 - 319 1 1/16 3/16 1.037 0.21   26.34 5.33
2 - 320 1 1/8 3/16 1.1 0.21   27.94 5.33
2 - 321 1 3/16 3/16 1.162 0.21   29.51 5.33
2 - 322 1 1/4 3/16 1.225 0.21   31.12 5.33
2 - 323 1 5/16 3/16 1.287 0.21   32.69 5.33
2 - 324 1 3/8 3/16 1.35 0.21   34.29 5.33
2 - 325 1 1/2 3/16 1.475 0.21   37.47 5.33
2 - 326 1 5/8 3/16 1.6 0.21   40.64 5.33
2 - 327 1 3/4 3/16 1.725 0.21   43.82 5.33
Size Nominal Size Standard Size   Metric Size
  inches inches   millimeters
  ID Width ID Width   ID Width
  Inside Diameter Inside Diameter     Inside Diameter
2 - 283 17 1/8 16.955 0.139   430.66 3.53
2 - 284 18 1/8 17.955 0.139   456.06 3.53
2 - 309 7/16 3/16 0.412 0.21   10.46 5.33
2 - 310 1/2 3/16 0.475 0.21   12.07 5.33
2 - 311 9/16 3/16 0.537 0.21   13.64 5.33
2 - 312 5/8 3/16 0.6 0.21   15.24 5.33
2 - 313 11/16 3/16 0.662 0.21   16.81 5.33
2 - 314 3/4 3/16 0.725 0.21   18.42 5.33
2 - 315 13/16 3/16 0.787 0.21   19.99 5.33
2 - 316 7/8 3/16 0.85 0.21   21.59 5.33
2 - 317 15/16 3/16 0.912 0.21   23.16 5.33
2 - 318 1 3/16 0.975 0.21   24.77 5.33
2 - 319 1 1/16 3/16 1.037 0.21   26.34 5.33
2 - 320 1 1/8 3/16 1.1 0.21   27.94 5.33
2 - 321 1 3/16 3/16 1.162 0.21   29.51 5.33
2 - 322 1 1/4 3/16 1.225 0.21   31.12 5.33
2 - 323 1 5/16 3/16 1.287 0.21   32.69 5.33
2 - 324 1 3/8 3/16 1.35 0.21   34.29 5.33
2 - 325 1 1/2 3/16 1.475 0.21   37.47 5.33
2 - 326 1 5/8 3/16 1.6 0.21   40.64 5.33
2 - 327 1 3/4 3/16 1.725 0.21   43.82 5.33
2 - 328 1 7/8 3/16 1.85 0.21   46.99 5.33
2 - 329 2 3/16 1.975 0.21   50.17 5.33
2 - 330 2 1/8 3/16 2.1 0.21   53.34 5.33
2 - 331 2 1/4 3/16 2.225 0.21   56.52 5.33
2 - 332 2 3/8 3/16 2.35 0.21   59.69 5.33
2 - 333 2 1/2 3/16 2.475 0.21   62.87 5.33
2 - 334 2 5/8 3/16 2.6 0.21   66.04 5.33



Size Nominal Size Standard Size   Metric Size
  inches inches   millimeters
  ID Width ID Width   ID Width
  Inside Diameter Inside Diameter     Inside Diameter
2 - 335 2 3/4 3/16 2.725 0.21   69.22 5.33
2 - 336 2 7/8 3/16 2.85 0.21   72.39 5.33
2 - 337 3 3/16 2.975 0.21   75.57 5.33
2 - 338 3 1/8 3/16 3.1 0.21   78.74 5.33
2 - 339 3 1/4 3/16 3.225 0.21   81.92 5.33
2 - 340 3 3/8 3/16 3.35 0.21   85.09 5.33
2 - 341 3 1/2 3/16 3.475 0.21   88.27 5.33
2 - 342 3 5/8 3/16 3.6 0.21   91.44 5.33
2 - 343 3 3/4 3/16 3.725 0.21   94.62 5.33
2 - 344 3 7/8 3/16 3.85 0.21   97.79 5.33
2 - 345 4 3/16 3.975 0.21   100.97 5.33
2 - 346 4 1/8 3/16 4.1 0.21   104.14 5.33
2 - 347 4 1/4 3/16 4.225 0.21   107.32 5.33
2 - 348 4 3/8 3/16 4.35 0.21   110.49 5.33
2 - 349 4 1/2 3/16 4.475 0.21   113.67 5.33
2 - 350 4 5/8 3/16 4.6 0.21   116.84 5.33
2 - 351 4 3/4 3/16 4.725 0.21   120.02 5.33
2 - 352 4 7/8 3/16 4.85 0.21   123.19 5.33
2 - 353 5 3/16 4.975 0.21   126.37 5.33
2 - 354 5 1/8 3/16 5.1 0.21   129.54 5.33
2 - 355 5 1/4 3/16 5.225 0.21   132.72 5.33
2 - 356 5 3/8 3/16 5.35 0.21   135.89 5.33
2 - 357 5 1/2 3/16 5.475 0.21   139.07 5.33
2 - 358 5 5/8 3/16 5.6 0.21   142.24 5.33
2 - 359 5 3/4 3/16 5.725 0.21   145.42 5.33
2 - 360 5 7/8 3/16 5.85 0.21   148.59 5.33
2 - 361 6 3/16 5.975 0.21   151.77 5.33
2 - 362 6 1/4 3/16 6.225 0.21   158.12 5.33



Size Nominal Size Standard Size   Metric Size
  inches inches   millimeters
  ID Width ID Width   ID Width
  Inside Diameter Inside Diameter     Inside Diameter
2 - 363 6 1/2 3/16 6.475 0.21   164.47 5.33
2 - 364 6 3/4 3/16 6.725 0.21   170.82 5.33
2 - 365 7 3/16 6.975 0.21   177.17 5.33
2 - 366 7 1/4 3/16 7.225 0.21   183.52 5.33
2 - 367 7 1/2 3/16 7.475 0.21   189.87 5.33
2 - 368 7 3/4 3/16 7.725 0.21   196.22 5.33
2 - 369 8 3/16 7.975 0.21   202.57 5.33
2 - 370 8 1/4 3/16 8.225 0.21   208.92 5.33
2 - 371 8 1/2 3/16 8.475 0.21   215.27 5.33
2 - 372 8 3/4 3/16 8.725 0.21   221.62 5.33
2 - 373 9 3/16 8.975 0.21   227.97 5.33
2 - 374 9 1/4 3/16 9.225 0.21   234.32 5.33
2 - 375 9 1/2 3/16 9.475 0.21   240.67 5.33
2 - 376 9 3/4 3/16 9.725 0.21   247.02 5.33
2 - 377 10 3/16 9.975 0.21   253.37 5.33
2 - 378 10 1/2 3/16 10.475 0.21   266.07 5.33
2 - 379 11 3/16 10.975 0.21   278.77 5.33
2 - 380 11 1/2 3/16 11.475 0.21   291.47 5.33
2 - 381 12 3/16 11.975 0.21   304.17 5.33
2 - 382 13 3/16 12.975 0.21   329.57 5.33
2 - 383 14 3/16 13.975 0.21   354.97 5.33
2 - 384 15 3/16 14.975 0.21   380.37 5.33
2 - 385 16 3/16 15.955 0.21   405.26 5.33
2 - 386 17 3/16 16.955 0.21   430.66 5.33
2 - 387 18 3/16 17.955 0.21   456.06 5.33
2 - 388 19 3/16 18.955 0.21   491.41 5.33
2 - 389 20 3/16 19.955 0.21   506.81 5.33
2 - 390 21 3/16 20.955 0.21   532.21 5.33



Size Nominal Size Standard Size   Metric Size
  inches inches   millimeters
  ID Width ID Width   ID Width
  Inside Diameter Inside Diameter     Inside Diameter
2 - 391 22 3/16 21.955 0.21   557.61 5.33
2 - 392 23 3/16 22.94 0.21   582.68 5.33
2 - 393 24 3/16 23.94 0.21   608.08 5.33
2 - 394 25 3/16 24.94 0.21   633.48 5.33
2 - 395 26 3/16 25.94 0.21   658.88 5.33
2 - 425 4 1/2 1/4 4.475 0.275   113.67 6.99
2 - 426 4 5/8 1/4 4.6 0.275   116.84 6.99
2 - 427 4 3/4 1/4 4.725 0.275   120.02 6.99
2 - 428 4 7/8 1/4 4.85 0.275   123.19 6.99
2 - 429 5 1/4 4.975 0.275   126.37 6.99
2 - 430 5 1/8 1/4 5.1 0.275   129.54 6.99
2 - 431 5 1/4 1/4 5.225 0.275   132.72 6.99
2 - 432 5 3/8 1/4 5.35 0.275   135.89 6.99
2 - 433 5 1/2 1/4 5.475 0.275   139.07 6.99
2 - 434 5 5/8 1/4 5.6 0.275   142.24 6.99
2 - 435 5 3/4 1/4 5.725 0.275   145.42 6.99
2 - 436 5 7/8 1/4 5.85 0.275   148.59 6.99
2 - 437 6 1/4 5.975 0.275   151.77 6.99
2 - 438 6 1/4 1/4 6.225 0.275   158.12 6.99
2 - 439 6 1/2 1/4 6.475 0.275   164.47 6.99
2 - 440 6 3/4 1/4 6.725 0.275   170.82 6.99
2 - 441 7 1/4 6.975 0.275   177.17 6.99
2 - 442 7 1/4 1/4 7.225 0.275   183.52 6.99
2 - 443 7 1/2 1/4 7.475 0.275   189.87 6.99
2 - 444 7 3/4 1/4 7.725 0.275   196.22 6.99
2 - 445 8 1/4 7.975 0.275   202.57 6.99
2 - 446 8 1/2 1/4 8.475 0.275   215.27 6.99
2 - 447 9 1/4 8.975 0.275   227.97 6.99



Size Nominal Size Standard Size   Metric Size
  inches inches   millimeters
  ID Width ID Width   ID Width
  Inside Diameter Inside Diameter     Inside Diameter
2 - 448 9 1/2 1/4 9.475 0.275   240.67 6.99
2 - 449 10 1/4 9.975 0.275   253.37 6.99
2 - 450 10 1/2 1/4 10.475 0.275   266.07 6.99
2 - 451 11 1/4 10.975 0.275   278.77 6.99
2 - 452 11 1/2 1/4 11.475 0.275   291.47 6.99
2 - 453 12 1/4 11.975 0.275   304.17 6.99
2 - 454 12 1/2 1/4 12.475 0.275   316.87 6.99
2 - 455 13 1/4 12.975 0.275   329.67 6.99
2 - 456 13 1/2 1/4 13.475 0.275   342.27 6.99
2 - 457 14 1/4 13.975 0.275   354.97 6.99
2 - 458 14 1/2 1/4 14.475 0.275   367.67 6.99
2 - 459 15 1/4 14.975 0.275   380.37 6.99
2 - 460 15 1/2 1/4 15.475 0.275   393.07 6.99
2 - 461 16 1/4 15.955 0.275   405.26 6.99
2 - 462 16 1/2 1/4 16.455 0.275   417.96 6.99
2 - 463 17 1/4 16.955 0.275   430.66 6.99
2 - 464 17 1/2 1/4 17.455 0.275   443.36 6.99
2 - 465 18 1/4 17.955 0.275   456.06 6.99
2 - 466 18 1/2 1/4 18.455 0.275   468.76 6.99
2 - 467 19 1/4 18.955 0.275   481.46 6.99
2 - 468 19 1/2 1/4 19.455 0.275   494.16 6.99
2 - 469 20 1/4 19.955 0.275   506.86 6.99
2 - 470 21 1/4 20.955 0.275   532.26 6.99
2 - 471 22 1/4 21.955 0.275   557.66 6.99
2 - 472 23 1/4 22.94 0.275   582.68 6.99
2 - 473 24 1/4 23.94 0.275   608.08 6.99
2 - 474 25 1/4 24.94 0.275   633.48 6.99
2 - 475 26 1/4 25.94 0.275   658.88 6.99



Size Tube Size   Standard Size     Metric Size
  inches   inches     millimeters
  OD   ID Width   ID Width
  Outside Diameter   Inside Diameter     Inside Diameter
3 - 901 3/32   0.185 0.056   4.7 1.42
3 - 902 1/8   0.239 0.064   6.07 1.63
3 - 903 3/16   0.301 0.064   7.65 1.63
3 - 904 1/4   0.351 0.072   8.92 1.83
3 - 905 5/16   0.414 0.072   10.52 1.83
3 - 906 3/8   0.468 0.078   11.89 1.98
3 - 907 7/16   0.53 0.082   13.46 2.08
3 - 908 1/2   0.644 0.087   16.36 2.21
3 - 909 9/16   0.706 0.097   17.93 2.46
3 - 910 5/8   0.755 0.097   19.18 2.46
3 - 911 11/16   0.863 0.116   21.92 2.95
3 - 912 3/4   0.924 0.116   23.47 2.95
3 - 913 13/16   0.986 0.116   25.04 2.95
3 - 914 7/8   1.047 0.116   26.59 2.95
3 - 916 1   1.171 0.116   29.74 2.95
3 - 918 1 1/8   1.355 0.116   34.42 2.95
3 - 920 1 1/4   1.475 0.118   37.47 3
3 - 924 1 1/2   1.72 0.118   43.69 3
3 - 928 1 3/4   2.09 0.118   53.09 3
3 - 932 2   2.337 0.118   59.36 3



Mechanical Seal Viton FKM O-Ring For Higher Temperature Chemical Use 1Mechanical Seal Viton FKM O-Ring For Higher Temperature Chemical Use 2Mechanical Seal Viton FKM O-Ring For Higher Temperature Chemical Use 3Mechanical Seal Viton FKM O-Ring For Higher Temperature Chemical Use 4Mechanical Seal Viton FKM O-Ring For Higher Temperature Chemical Use 5

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on

टैग:

M74 पंप यांत्रिक जवानों

Hidrostal पंप यांत्रिक जवानों

2.5MPa पंप यांत्रिक जवानों

आप इन में हो सकता है
हम से संपर्क में रहें

अपना संदेश दर्ज करें

info@supseals.com
+8618130083767
